Intermittent sticking observed on one or more latches/doors
Body Panels
Large dents or cracks; Visible chipped paint or dents; Areas of rust corrosion or rust cancer observed
Handrails
Bent or broken railings
Exterior Lights
Fogged lenses
Glass
Major chips or cracks observed
Control Station
Controls Switches
Cabin Lights
Horn
Backup Camera
Heater Ac
Fan vents are damaged; Fan vents are very dirty
Hour Meter Activity
Safety Lock Out Stop
Other Gauge Activity
Seat
Seat(s) have minor surface staining or small tears; Seat belt secures properly
Engine
Radiator
Belts
Oil Appearance
Diesel Exhaust Fluid Tank
Coolant Appearance
Battery
Inaccessible, unable to determine condition
Belts Hoses
Dried seepages observed
Water Pump
Diesel Particulate Filter Condition
Soot accumulation observed on the DPF outlet face
Drivetrain
Transmission Components
Dried seepage found on transmission components
Parking Brake
Chassis
Lift Arm
Stance
Front Axle Appearance
Articulating Center Pin Appearance
Frame
Corrosion rust found on areas of the frame
Rear Axle Appearance
Dried seepage found at rear axle
Chassis To Arm Pins
Tilt Linkage
Rusted components linkage
Tilt Linkage Pins And Bushings
Rusted components
Wheels And Tires
Hydraulics
Hydraulic Pumps
No unusual noises heard during operation
Mounting Pins
Hydraulic Lines And Fittings
Worn, cut, or damaged hose covering; Rusted hydraulic fittings
Attachments
About this equipment

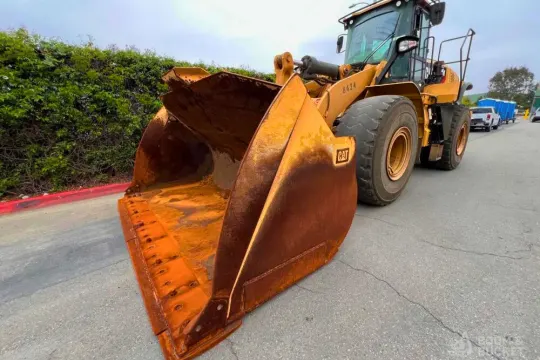

Coming from the AEMP 2024 Fleet Masters Large Fleets Award Winner, this 2015 Caterpillar 966M wheel loader is a robust and high-capacity machine, boasting a 276HP Cat C9.3 ACERT engine and a hefty 51,176 lbs operating weight. It's equipped with a 9.24 yd³ bucket and aggregate handler counterweight making it ideal for heavy-duty material handling. Features include an enclosed cab with A/C, heat, and radio, a backup camera, and a Lincoln auto-lube system. Despite 14,482 hours of operation, the engine starts right up and the machine operates normally with functional displays and controls. The inspection notes areas of dried seepage, rust on the exterior, and low tire tread depth.
Features
136" Coal Bucket (9.24 yd3)
Lincoln Auto-Lube System
Aggregate Counterweight
Enclosed Cab (EROPS)
Equipped with Diesel Particulate Filter
Backup Camera
A/C & Heat
Radio
Specifications
Engine: Cat C9.3 ACERT - 276HP - 9.3L - Diesel
EPA Tier 4F
4WD
Bucket Size: 9.24 yd3
Maximum Operating Pressure: 4,496 psi
Breakout Force: 38,984 lbf
Ground Clearance: 1.42ft in
Tire: Maxam 26.5R25
Operating Weight: 51,176 lbs
