RIDE CONTROL

(6) TIE DOWN POINTS, HEADLINER

*(RH)LOADER PIN MISSING

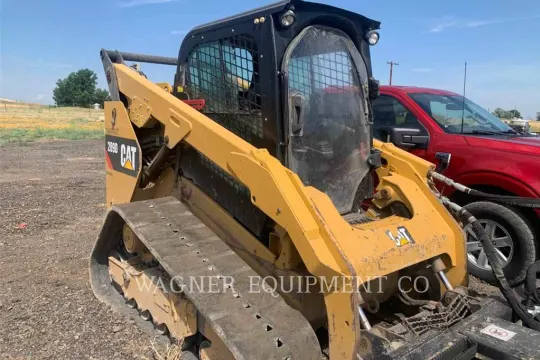

2017 CATERPILLAR 289D CT LOADER

289D CTL TIER4 HRC

3734 BW 12/12/23

5" DISPLAY, BASIC, LCD,

ADJUSTABLE JOYSTICK CONTROLS

ANTI-THEFT SYSTEM, PARKING BRAKE

AS IS / AS RECEIVED

AUXILIARY CONT,FLOW ... GPM/44HP

BATTERY,HVY,850CCA

BEACON, 2 SPD TRAVEL, EPA LABEL

BELT, SEAT, 2"

BUCKET-GP, 80" BOT (FAIR COND)

CAB,A/C,HEAT,DEF,ROPS-FOPS,(C3)

CERT ARR, US/CNDA

CONTROL,ISO,PROP,WT JSTK

COUNTERWEIGHT,TOP & REAR WINDOW

DOOR,CAB,GLASS,WIPER,DOME LIGHT

ENGINE,C3.3B DIT, 74 HP, TIER 4F

FAN,COOLING DEMAND VAR SP

FLOOR MAT,TRAVEL ALARM, MIRROR,

LIGHTS, HALOGEN CAB & WORK (4)

Online Owner's Manual

PKG, PERFORMANCE H2

PROD LINK CELL PL240

QUICK COUPLER, HYD

RADIO, AM/FM,CD,BLUETOOTH

RUBR BLT, 2S, TF

SEAT,AIR SUSP,CLOTH,HEAT

SELF LVL ANS ,DUAL ILEV

TRACK, RUBBER,17.7 @25%

TRANSMISSION,HYDROSTATIC 2 SPD

Engine Power: 74.3 hp

Displacement: 203.2 cu in

Net Power: 72.9 hp

Peak Torque: 192 lb-ft

Fuel Tank Capacity: 27.7 gal

Operating Weight: 10,533 lb

Rated Operating Capacity: 3,800 lb

Tipping Load: 7,600 lb

Ground Pressure: 4.8 psi

Track Width: 15.7 in

Length of Track on Ground: 59 in

Loader Hydraulic Flow: 23 gal/min

Hydraulic Pressure: 3,335 psi

Max Travel Speed: 5.6 mph

Width over tracks: 78 in
