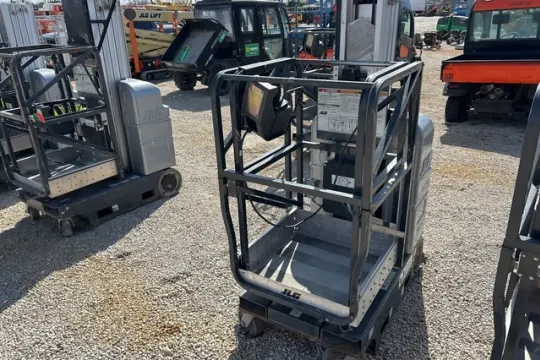

2017 JLG 20MVL
- 71 hours
- Ships nationwide
- #A3816137
+37 more2017 JLG 20MVL
- 71 hours
- Ships nationwide
- #A3816137
Features
Vertical Lift Mast
Non-Marking Tires
Drivable at Full Height
On-Board Diagnostic Display
Zero Turning Radius
Platform Work Lights (Optional)
Proportional Lift and Drive Controls
Battery Charge Indicator
Automatic Traction Control (ATC)
Fold-Down Platform Rails
Self-Closing Swing Gate
Tool Tray or Workstation (Optional)
Lanyard Attach Points
110V-AC Receptacle in Platform (Optional)
Descent & Tilt Alarm
Specifications
Power Type: Electric
Maximum Platform Height: 19.75 ft
Maximum Working Height: 25.75 ft
Platform Size: 26 in x 26 in
Maximum Load Capacity: 350 lbs
Machine Weight: 2,700 lbs
Overall Width: 29.5 in
Stowed Height: 6.5 ft
Drive Speed - Platform Lowered: 2.5 mph
Gradeability: 25%
Turning Radius: Zero
Battery: 24V DC (four 6V 220 amp-hour batteries)
Hydraulic System Capacity: 1 gal
Lift Time: 20 sec
Lower Time: 30 sec
