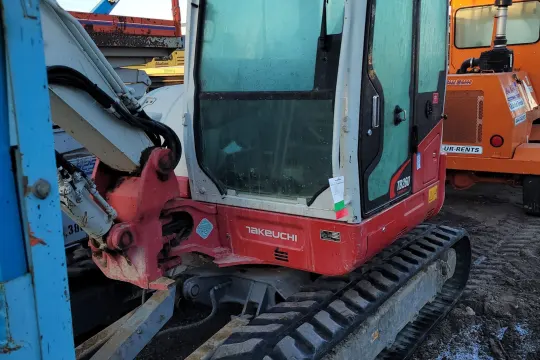

2017 Takeuchi TB260CR Mini
- Ships nationwide
- #A9808581
+8 more2017 Takeuchi TB260CR Mini
- Ships nationwide
- #A9808581
No longer available
About this equipment
Our compact excavators — also known as mini excavators — are perfect for your earth-moving needs in close working conditions. Select from multiple dig depths, 3 arm configurations and 3 tail swing configurations. The cab has excellent visibility for the operator's safety and comfort.
Specifications
Operating Weight: 12,125 lbs
Engine Power: 47.6 HP
Bucket Breakout Force: 14,613 lbs
Arm Digging Force: 7,275 lbs
Max Dig Depth: 12 ft 9.5 in
Max Dump Height: 14 ft 1.6 in
Max Reach Along Ground: 20 ft 4.9 in
Engine Make: Yanmar
Engine Model: 4TNV84T-ZMBVA
Displacement: 122.0 cu in
Fuel Capacity: 21.1 gal
Hydraulic System Relief Valve Pressure: 3,481 psi
Hydraulic Pump Flow Capacity: 39.6 gal/min
Swing Speed: 9.0 RPM
Travel Speed - High: 3.1 mph
Travel Speed - Low: 1.6 mph
Track Shoe Width: 17.7 in
Specs and measurements are based on available records. Please confirm with our team for precise details prior to purchase.
