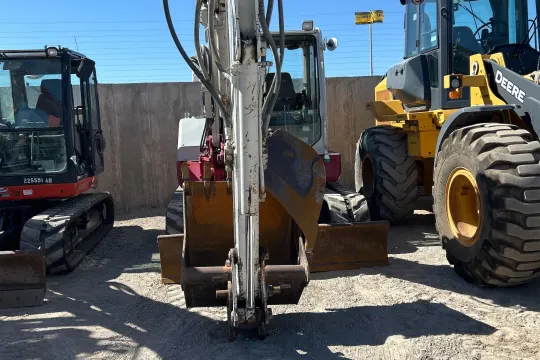

Complete your standard clearing, digging or trenching with an excavator. This excavator has an easy-to-use engine, a hydraulic system that maximizes engine output, and saves fuel by keeping a constant balance between pressure and flow. Also known as trackhoes or diggers, excavators are easy to control in multiple-function applications, like precision grading. Just punch in the grading mode and you'll be smoothly propelled across the top of the embankment. This range of excavators is ideal for construction sites with room to maneuver, but it has limited tail swing for maneuverability.
Enclosed Cab with Air Conditioning
Adjustable Suspension Seat
Multi-function Color Display
Rearview Camera (Optional)
Hydraulic Quick Coupler
Engine Auto-Idle Feature
Eco and High Altitude Work Modes
Sound-Insulated Cab Design
Compact Tail Swing for Tight Space Operation
Cabin Top Guard ISO 10262 (FOPS)
Pilot Operated Joystick Controls
LED Work Lights
Automatic Fuel Priming System
Travel Alarm (Optional)
Proportional Auxiliary Hydraulics with Detent
Engine Power: 69 hp
Displacement: 203.2 cu in
Operating Weight: 18,780 lbs
Fuel Capacity: 21.1 gal
Hydraulic System Fluid Capacity: 29.1 gal
Max Digging Depth: 15 ft
Max Reach Along Ground: 24.5 ft
Max Cutting Height: 26.5 ft
Max Loading Height: 18.8 ft
Track Width: 17.7 in
Boom Swing - Left: 70 degrees
Boom Swing - Right: 50 degrees
Tail Swing Radius: 4.6 ft
Engine Make: Yanmar
Engine Model: 4TNV98CT
For your convenience, we've included these documents free to download so you can make the best decision.
