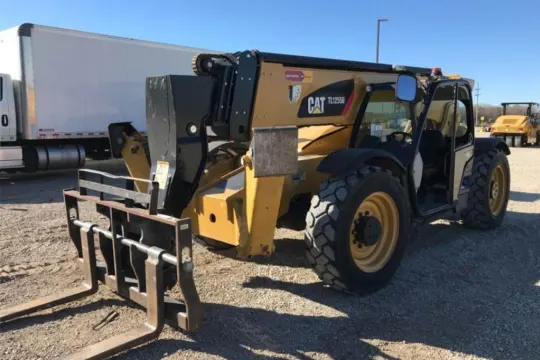

2018 Caterpillar TL1255DO
- 1858 hours
- Ships nationwide
- #A6325046
+20 more2018 Caterpillar TL1255DO
- 1858 hours
- Ships nationwide
- #A6325046
About this equipment
The 2018 Caterpillar TL1255DO is a robust telehandler designed for demanding lifting and material handling tasks. This model features a rigid chassis, a Cat C4.4 ACERT turbocharged engine producing 106 kW, and a powershift transmission. It excels in versatility with a maximum lift height of 16,600mm and a lift capacity of 5,443 kg. The telehandler operates efficiently with a top speed of 33 kph and a turning radius of 4,300mm, ensuring maneuverability in tight spaces. Equipped with durable 400/75-28 tires and capable of operating under various conditions, it has clocked 1,858 hours, highlighting its reliability and performance.
Specifications
Chassis Type: Rigid
Transmission Type: Powershift
Engine Manufacturer: Cat
Engine Model: C4.4 ACERT
Number Of Cylinders: 4
Aspiration: Turbo
Displacement: 4.4ltr
Engine Output - Gross: 106kW
Tyre - Front Size: 400 / 75 - 28
Tyre - Rear Size: 400 / 75 - 28
Wheelbase: 3490mm
Lift Height - Maximum: 16600mm
Turning Radius - Over Tyres: 4300mm
Lift Capacity - Maximum: 5443kg
Unstabilised Lift Capacity - To Max Reach: 136kg
Load Centre: 610mm
Raise Time - Boom: 16.7sec
Speed - Forward Maximum: 33kph
Operating Weight: 15586kg
