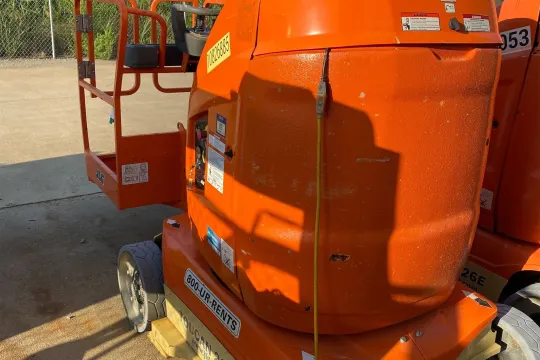

This vertical mast boom lift makes quick work of elevated maintenance, painting, lighting and repair work. This personnel lift has capable maneuverability and is easily operated and driven from the platform, which has a lift height of up to 26'. In addition, our vertical boom lifts are designed to fit in narrow spaces, such as through doorways and into freight elevators.
Non-marking tires
Electric drive
Zero-emission operation
Automatic battery charger
Proportional lift and drive controls
LED Platform Work Lights (Optional)
Platform Air Line to Platform (Optional)
Tilting Rail (Optional)
Platform Console Machine Status Light Panel
Multi-axis joystick control
Battery Condition Indicator
Lifting/Tie Down Lugs
Hourmeter
Flashing Amber Beacon (Optional)
Driveable at Full Height
Maximum Platform Height: 26 ft
Maximum Lifting Capacity: 500 lb
Overall Width: 47 in
Stowed Height: 6.6 ft
Stowed Length: 4.75 ft
Wheelbase: 5.25 ft
Ground Clearance: 2.5 in
Platform Size (L x W): 35 in x 89 in
Drive Speed - Stowed: 2.5 mph
Drive Speed - Elevated: 0.5 mph
Gradeability: 25%
Turning Radius - Inside: 0
Turning Radius - Outside: 108 in
Power Source: 24V electric
Tire Type: Solid non-marking
