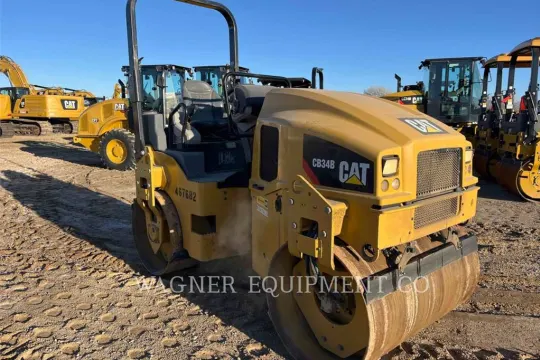

2019 Caterpillar CB34B
- 3585 hours
- Ships nationwide
- #A3614101
+34 more2019 Caterpillar CB34B
- 3585 hours
- Ships nationwide
- #A3614101
About this equipment
The 2019 Caterpillar CB34B is a robust compactor designed for efficient compaction operations. Powered by a C1.5 engine with a gross power of 44.7 hp and net power of 43.2 hp, it ensures reliable performance. This model features a substantial operating weight of 9040 lbs with a cab, making it stable during operation. It boasts a fuel tank capacity of 24.6 gallons, reducing the need for frequent refueling. The compactor's drum width is 51 inches, with front and rear drum diameters of 27.6 inches each, ideal for a variety of surfaces. With 3585 hours logged, it remains a durable choice for construction needs.
Features
Enclosed Cab with HVAC (Optional)
Vibratory Double Drum Asphalt
Eco-mode for Improved Fuel Efficiency
Adjustable Seat with Safety Belt
Water Spray System
Halogen Work Lights for Night Operations
LCD Display with Diagnostic Capabilities
Foldable ROPS (Roll-Over Protective Structure)
Dual Drum Drive for Maximum Traction
Articulated Steering
Edge Cutter to Ensure Clean Roll-Over at the Edges
Drum Offset Capability for Closer Rolling Near Obstacles
Automatic Water Spray System
Hour Meter
Travel Control with Propulsion Lever
Specifications
Engine Model: C1.5
Gross Power: 44.7 hp
Net Power: 43.2 hp
Operating Weight with Cab: 9040 lb
Fuel Tank Capacity: 24.6 gal
Drum Width: 51 in
Drum Diameter - Front: 27.6 in
Drum Diameter - Rear: 27.6 in
Vibration Frequency 1: 42 Hz
Nominal Amplitude - High: 0.02 in
Nominal Amplitude - Low: 0.01 in
Centrifugal Force - High: 7874 lb
Centrifugal Force - Low: 4844 lb
Travel Speed - Maximum: 7.5 mph
Gradeability - Maximum: 30%
