2019 Takeuchi TL10V2-CR

  • 2497 hours
  • 2327 miles
  • Ships nationwide
  • #A8459686
17
image+14 more

2019 Takeuchi TL10V2-CR

  • 2497 hours
  • 2327 miles
  • Ships nationwide
  • #A8459686
Asking Price$44,575
Tax Benefits
$9,361
Price with tax savings$35,214
Est. Loan Payment
Price excludes taxes, fees, and shipping
  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

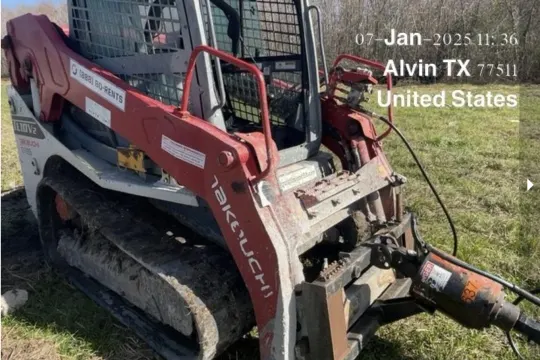

The 2019 Takeuchi TL10V2-CR is a compact vertical-lift track loader designed for heavy-duty digging, grading, and material handling in construction, landscaping, and utility applications. With its vertical-lift design, high-performance hydraulic system, and spacious operator cab, it delivers exceptional stability, lifting power, and efficiency. The reinforced undercarriage and multiple attachment capabilities make it a versatile and reliable choice for demanding job sites. Used – Fair Condition: Machine shows noticeable wear from use, including multiple scratches, scuffs, and faded paint. Tracks or tires show moderate wear but remain functional. Equipment is still in working condition.

Specifications

  • Operating Weight: 9,950 lbs (4,515 kg)

  • Rated Operating Capacity (35% of Tipping Load): 2,522 lbs (1,144 kg)

  • Tipping Load: 7,205 lbs (3,268 kg)

  • Bucket Breakout Force: 6,520 lbs (2,957 kg)

  • Lift Arm Breakout Force: 5,400 lbs (2,450 kg)

  • Traction Force: 9,730 lbs (4,413 kg)

  • Ground Pressure: 4.9 psi (34.3 kPa)

  • Travel Speed (Low/High): 4.8 mph (7.7 km/h) / 7.0 mph (11.3 km/h)

  • Auxiliary Hydraulic Flow (Standard/High Flow): 18.8 gpm (71.2 L/min) / 32.8 gpm (124.0 L/min)

  • Hydraulic System Pressure: 3,481 psi (24.0 MPa)

  • Fuel Tank Capacity: 21.5 gallons (81.0 liters)

  • Ground Clearance: 12.6 inches (320 mm)

  • Overall Width (without bucket): 5 ft 8.5 in (1,740 mm)

  • Max Lift Height to Bucket Pin: 10 ft 4.8 in (3,169 mm)

  • Dump Height Fully Raised: 7 ft 11.9 in (2,435 mm)

  • Dump Reach Fully Raised: 3 ft 1.4 in (950 mm)

  • Engine Power: 74.3 hp (55.4 kW)

  • Undercarriage: Heavy-duty rubber track system with multiple flange rollers

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.


Close-up detailed photos

Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
