2020 Caterpillar CB15
- 798 hours
- Ships nationwide
- #A5886411
+14 more2020 Caterpillar CB15
- 798 hours
- Ships nationwide
- #A5886411
About this equipment

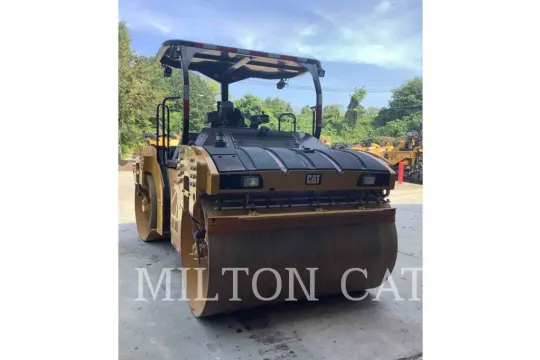

The 2020 Caterpillar CB15 is a robust compactor designed for efficient soil and pavement compaction. It features a powerful 131 hp engine and an operating weight of 22,050 lbs, ensuring deep penetration and high productivity. The compactor includes a versatile 84-inch drum, advanced Versa Vibe system for varied amplitude adjustments, and a water spray system for dust control. Safety and operational efficiency are enhanced by its lighting, beacon, and ROPS/FOPS. It also supports eco-friendly operations with ultra-low sulfur diesel fuel and includes a product link for easy monitoring. Ideal for challenging terrains, it can achieve up to a 55% gradeability without vibration.
Features
LIGHTING
PRODUCT LINK
ULTRA LOW SULFUR DIESEL FUEL
WATER SPRAY SYS
EPA LABEL
OROPS
BEACON
OFF SET HITCH
Online Owner's Manual
ROPS / FOPS
VERSA VIBE
Specifications
Engine Power: 131 hp
Displacement: 276 cu in
Operating Weight: 22,050 lbs
Fuel Capacity: 51.5 gal
Drum Width: 84 in
Vibration Frequency: 31.9 Hz
Nominal Amplitude - High: 0.067 in
Nominal Amplitude - Low: 0.032 in
Centrifugal Force - High: 28440 lb
Centrifugal Force - Low: 15620 lb
Travel Speed - Maximum: 7.5 mph
Gradeability - Without Vibration: 55%
