Enclosed Cab with HVAC (Heating, Ventilation, and Air Conditioning)

Electronically Controlled Suspension Seat with Heat

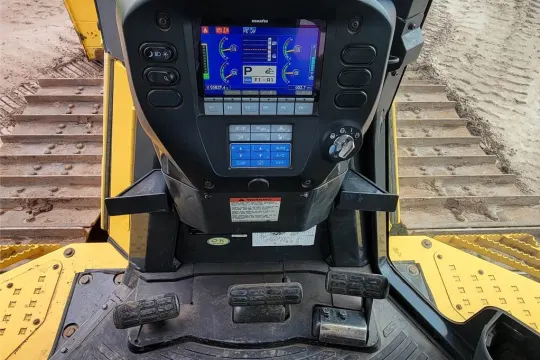

Multifunctional Monitor with Diagnostic Capabilities

Rear View Monitoring System (Backup Camera)

Palm Command Control System (PCCS) for Blade and Ripper Operation

Hydrostatic Transmission

Komatsu PLUS (Parallel Link Undercarriage System)

Blade Auto Pitch Adjustment

Auto-Idle Shutdown to Save Fuel

Power Angle Tilt Blade (Optional)

Sealed and Lubricated Track Links

Clear View Monitor (Optional)

KOMTRAX Remote Monitoring and Management Technology

Enhanced Provision for Aftermarket Grade Control (Optional)

LED Work Lights for Increased Night Visibility (Optional)

Operating Weight: 48,080 lbs

Engine Power: 217 hp

Displacement: 540 cu in

Fuel Capacity: 130.9 gal

Blade Capacity: 7.2 yd³

Blade Width: 13.5 ft

Blade Height: 4.3 ft

Track Width: 30 in

Maximum Forward Speed: 5.5 mph

Maximum Reverse Speed: 4.2 mph

Ground Pressure: 5.8 psi

Engine Model: Komatsu SAA6D107E-3

Number of Cylinders: 6

Transmission Type: Hydrostatic
