2020 Takeuchi TL12R2-CR

  • 6905 hours
  • 4624 miles
  • Ships nationwide
  • #A5994455
15
image+12 more

2020 Takeuchi TL12R2-CR

  • 6905 hours
  • 4624 miles
  • Ships nationwide
  • #A5994455
Asking Price$57,062
Tax Benefits
$11,983
Price with tax savings$45,079
Est. Loan Payment
Price excludes taxes, fees, and shipping
  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

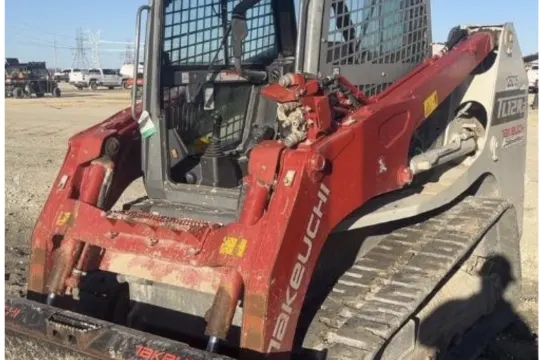

The 2020 Takeuchi TL12R2-CR is a powerful radial-lift compact track loader built for heavy-duty earthmoving, material handling, and construction applications. Featuring a high-performance hydraulic system, reinforced undercarriage, and spacious operator cab, it delivers exceptional lifting power, traction, and comfort. The radial-lift design enhances mid-range reach and digging capabilities, making it ideal for grading and excavation work. Machine shows noticeable wear from use, including multiple scratches, scuffs, and faded paint. Tracks or tires show moderate wear but remain functional. Equipment is still in working condition.

Specifications

  • Operating Weight: 12,590 lbs (5,710 kg)

  • Rated Operating Capacity (35% of Tipping Load): 2,975 lbs (1,349 kg)

  • Tipping Load: 8,629 lbs (3,915 kg)

  • Bucket Breakout Force: 8,210 lbs (3,722 kg)

  • Lift Arm Breakout Force: 8,075 lbs (3,663 kg)

  • Traction Force: 14,010 lbs (6,353 kg)

  • Ground Pressure: 4.68 psi (32.3 kPa)

  • Travel Speed (Low/High): 5.0 mph (8.1 km/h) / 7.3 mph (11.8 km/h)

  • Auxiliary Hydraulic Flow (Standard/High Flow): 23.2 gpm (88.0 L/min) / 40.4 gpm (153.0 L/min)

  • Hydraulic System Pressure: 3,481 psi (24.0 MPa)

  • Fuel Tank Capacity: 31.6 gallons (119.5 liters)

  • DEF Fluid Tank Capacity: 4.8 gallons (18.0 liters)

  • Ground Clearance: 12.5 inches (320 mm)

  • Overall Width (without bucket): 6 ft 5.2 in (1,960 mm)

  • Max Lift Height to Bucket Pin: 10 ft 6 in (3,200 mm)

  • Dump Height Fully Raised: 7 ft 10.5 in (2,400 mm)

  • Dump Reach Fully Raised: 3 ft 1.8 in (960 mm)

  • Engine Power: 111.3 hp (83.0 kW)

  • Undercarriage: Heavy-duty rubber track system with dual and triple flange rollers

Digital Glovebox

For your convenience, we've included these documents free to download so you can make the best decision.


Close-up detailed photos

Listings may picture specialty attachments not included in the sale. If you have questions about machine configuration, contact our sales team.
