2020 Takeuchi TL8R2-CR

  • 1555 hours
  • 162 miles
  • Ships nationwide
  • #A1070317
17
image+14 more

2020 Takeuchi TL8R2-CR

  • 1555 hours
  • 162 miles
  • Ships nationwide
  • #A1070317
Asking Price$49,687
Tax Benefits
$10,434
Price with tax savings$39,253
Est. Loan Payment
Price excludes taxes, fees, and shipping
  • No Payments For 90 Days

    Buy now, pay later for well qualified borrowers. Don't let heavy cost slow you down.

About this equipment

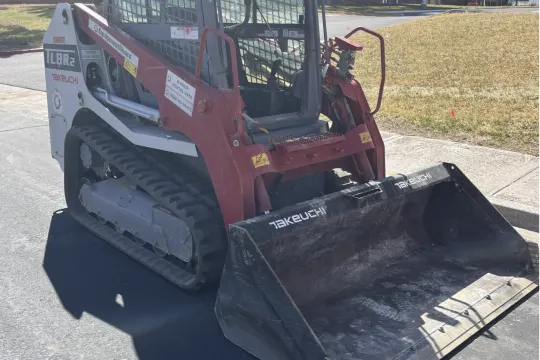

The 2020 Takeuchi TL8R2-CR is a compact radial-lift track loader designed for digging, grading, and material handling in construction, landscaping, and utility applications. With its zero-tail swing design, high-performance hydraulic system, and spacious operator cab, it delivers exceptional stability, traction, and efficiency. The reinforced undercarriage and multiple attachment capabilities make it a versatile and reliable choice for demanding job sites. Equipment is fully operational with minor signs of wear, including light scratches and normal use marks. Tracks or tires have some wear but remain in functional condition.

Specifications

  • Operating Weight: 8,807 lbs (3,995 kg)

  • Rated Operating Capacity (35% of Tipping Load): 2,116 lbs (960 kg)

  • Tipping Load: 6,041 lbs (2,740 kg)

  • Bucket Breakout Force: 6,204 lbs (2,814 kg)

  • Lift Arm Breakout Force: 5,957 lbs (2,702 kg)

  • Traction Force: 9,733 lbs (4,415 kg)

  • Ground Pressure: 4.5 psi (31.0 kPa)

  • Travel Speed (Low/High): 4.7 mph (7.5 km/h) / 6.8 mph (11.0 km/h)

  • Auxiliary Hydraulic Flow (Standard/High Flow): 19.1 gpm (72.3 L/min) / 33.8 gpm (128.0 L/min)

  • Hydraulic System Pressure: 3,045 psi (21.0 MPa)

  • Fuel Tank Capacity: 28.3 gallons (107.0 liters)

  • Ground Clearance: 11.4 inches (290 mm)

  • Overall Width (without bucket): 5 ft 5.4 in (1,660 mm)

  • Max Lift Height to Bucket Pin: 10 ft 1.2 in (3,080 mm)

  • Dump Height Fully Raised: 7 ft 11.3 in (2,420 mm)

  • Dump Reach Fully Raised: 2 ft 4.3 in (720 mm)

  • Engine Power: 74.3 hp (55.4 kW)

  • Undercarriage: Heavy-duty rubber track system with multiple flange rollers
