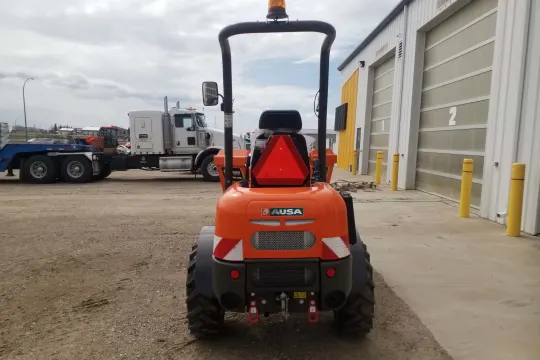

The D150AHG is part of the most compact range of articulated dumpers, with a 1.5-tonne (3,300 lb) payload and a 180-degree swing skip, it has a perfect payload size ratio. The small size of the D150AHG, makes it suitable for minor construction work and work in difficult-to-reach areas such as narrow streets and parks and, with its swing skip, it is perfect for filling ditches. Its permanent 4x4 drive allow it to handle the toughest terrains. With its hydrostatic transmission, maximum comfort and safety are assured. Thanks to the transmission brake, it prevents the machine from moving under its own weight on slopes, without you even touching the brake pedal. Also, as there is no need to change gears, the driver can focus on the movements of the machine and its load.
Max. speed: 8.7 mph
Maximum gradient: 40%
External turning radius: 128.3in
4WD
Load Capacity: 3,300 lb
Chassis: Articulated and oscillating
Water hopper capacity: 0.68 cu yd
Level hopper capacity: 0.82 cu yd
Heaped hopper capacity: 1.18 cu yd
Transmission: Hydrostatic
Emissions: EPA Tier4, Stage V
Hydraulic System: Main pump 0.49 cc gear pump, Flow rate 4.56 gal/min, Working pressure 180 bar
Engine: KUBOTA, D1105-E4B, 20.9 hp, 2400 rpm, 71.4@1600 Nm@rpm, 3 cylinders
For your convenience, we've included these documents free to download so you can make the best decision.
