2022 Case 586H
- Ships nationwide
- #A0218653
+10 more2022 Case 586H
- Ships nationwide
- #A0218653
About this equipment

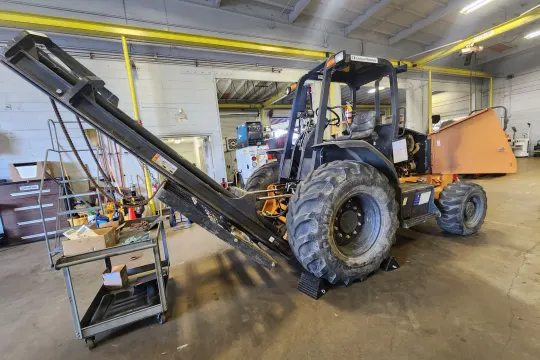

This all-terrain forklift gives you fast boom cycle times and excellent lift capacity for maximum productivity. Sway control levels the frame when placing materials on uneven ground. It has 3 hydrostatic power steering modes: 4-wheel steer, front-wheel steer and crab steer for excellent maneuverability.
Features
Enclosed Cab with HVAC
Ergonomic Operator Station
LCD Display with Diagnostic Capabilities
Side-Shift Functionality (optional)
Tilt Steering Column
Hydraulic Fork Positioning (optional)
Dual Front Wheels for Increased Stability
LED Work Lights for Improved Visibility
Rearview Mirrors on Both Sides
Suspension Seat with Lumbar Support
Maintenance-Free Battery
Safety Light Package
Operator Presence System
Fire Extinguisher Mount (optional)
Tool Storage Compartment
Specifications
Engine Power: 74 hp
Displacement: 207 cu in
Lift Capacity: 6,000 lbs
Operating Weight: 14,570 lbs
Fuel Capacity: 29.1 gallons
Max Lift Height: 22 ft
Turning Radius: 12 ft
Transmission Type: Powershift
Number of Forward Gears: 4
Number of Reverse Gears: 3
Drive: 4WD
Tire Size Front: 12 x 16.5
Tire Size Rear: 19.5L-24
