Engine

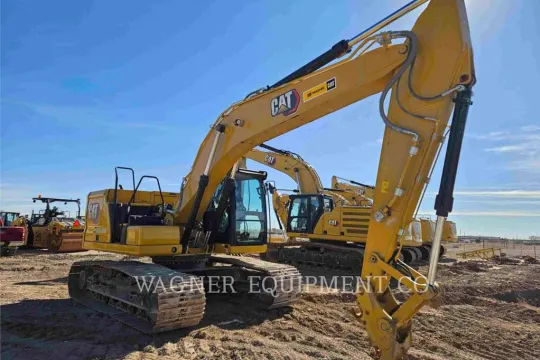

320 07 EXCAVATOR ARRANG

799 GD 12/5/24

ALARM, TRAVEL

BATTERIES, 2

BEARING, SWING, STD

BOOM TUBE W/EOU

BOOM, REACH 18'8"

CAB, DELUXE

CAMERA, 360 VISIBILITY

COMMON ARRANGEMENT

CONSISTS OF:

CONTROL, QC

COOLING, HIGH AMBIENT

COUPLER PG W/O PIN B1

CYLINDER, BKT, B1

CYLINDER, BOOM

CYLINDER, STICK

END OF CONSIST

FILM, EMC

FILM, EXTERIOR, ANSI

FILM, INTERIOR, ANSI

FILM, OPERATING PATTERN,

FILM, ROPS

FILM, STICK WARNING, ANSI

FINE SWING

FRAME, SWING, SEMI HD

GRADE SENSOR, R9'6"/9'8" STICK

GRADE SENSOR, REACH BOOM

GRADE W/2D, ASSIST&PAYLOAD

GUARD, BOTTOM, STD

GUARD, SWIVEL, STD

GUARD, TRACK GUIDE, SEGMENTED

GUARD, TRAVEL MOTOR, STD

HANDHOLDS, RAD COMPARTMENT

HYDRAULIC PKG, COMB ADV

INSTRUCTIONS, ENGLISH

INTEGRATED RADIO, W/O DAB

JOYSTICKS, VERTICAL SLIDER

LIGHT, CHASSIS

LIGHTS PKG, BOOM LH & RH

LIGHTS, CAB, W/RAIN PROTECTOR

LINES, AIR CONDITIONER

LINES, DRAIN, PG QC

LINES, FRONT, STD

LINES, HP, R9'6" STICK

LINES, HP, REACH BOOM

LINES, QC, R9'6" STICK

LINES, QC, REACH BOOM

LINKAGE, BKT, B1 W/EYE GRADE

MACHINE ECM

MIRROR, CAB, W/O GUARD

MONITOR, 10"

NETWORK MANAGER, A6N1

Online Owner's Manual

PEDAL, STRAIGHT TRAVEL

PROD LINK, PLE643/PLE743 RADIO

QUICK DRAINS READY

SENSOR, PRESSURE, EOU

STARTING AID, ETHER

STICK, R9'6"

STORAGE TRAY

SUCTION LINE, PUMP, STD

SUN SCREEN, REAR

SWING DRIVE

TRACK, 31" TG

UC LONG W/HD ROLLER

WIPER, RADIAL W/O LOWER

Engine Power: 162 hp

Operating Weight: 50,200 lbs

Fuel Capacity: 82.7 gallons

Hydraulic System Fluid Capacity: 39.6 gallons

Engine Model: Cat C4.4

Bucket Capacity: 0.5 - 1.8 cu yd

Maximum Digging Depth: 22 ft

Max Reach Along Ground: 32 ft 4 in

Displacement: 269 cu in

Emissions Level: Tier 4 Final
