Undercarriage, Long

Engine

1277 GD 8/12/24

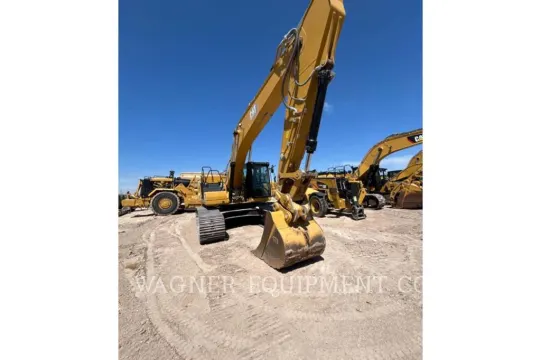

330 07 EXCAVATOR ARRANGE

BATTERIES, 4

BLOCK HEATER, 120V

BOOM TUBE W/EOU

BOOM, REACH 20'2"

CAB, DELUXE

CAMERA, 360 VISIBILITY

COLD STARTING, ETHER

COMMON ARRANGEMENT

CONSISTS OF:

CONTROL, QC

COUNTERWEIGHT, 14,770 LBS

COUPLER, PG W/O PINS CB

CYLINDER, BKT, CB2

CYLINDER, BOOM

CYLINDER, STICK

END OF CONSIST

FILM, EMC

FILM, EXTERIOR, ANSI

FILM, INTERIOR, ANSI

FILM, OPERATING PTTRN,2WAY

FILM, ROPS

FILM, STICK WARNING, ANSI

FINE SWING

GRADE SENSOR, R10'6" STICK

GRADE SENSOR, REACH BOOM

GRADE W/2D, ASSIST&PAYLOAD

GUARD, BOTTOM HD

GUARD, SWIVEL

GUARD, TRACK GUIDING,SEGMENTED

GUARD, TRAVEL MOTOR, HD

HYDRAULIC PKG, COMB ADV + HRF

INSTRUCTIONS, ENGLISH

INTEGRATED RADIO, W/O DAB

JOYSTICKS, VERTICAL SLIDER

LIGHT, CHASSIS

LIGHTS PKG, REACH & SLR BOOM

LIGHTS PKG, SURROUNDING 2D

LIGHTS, CAB, W/RAIN PROTECTOR

LINES, A/C

LINES, DRAIN, PQC

LINES, HP, REACH BOOM

LINES, QC, REACH BOOM

LINES,CONNECTOR,PIN GRABBER IN

LINES-HP, R10'6" STICK

LINES-QC, R10'6" STICK

LINKAGE, BKT CB2 W/EYE GRADE

MACHINE ECM

MIRROR, CAB, W/O GUARD

MONITOR, 10"

NETWORK MANAGER, A6N1

Online Owner's Manual

PEDAL, STRAIGHT TRAVEL

PROD LINK, PLE643/PLE743 RADIO

QUICK DRAINS READY

RECEIVER, BLUETOOTH

SENSOR, PRESSURE, EOU

STICK, R10'6"

STORAGE TRAY

TRACK, 31" TG

TRAVEL, ALARM

WIPER, RADIAL W/O LOWER

Engine Power: 273 hp

Displacement: 537.3 cu in

Net Power - ISO 9249: 273 hp

Gross Power - ISO 14396: 302 hp

Bore: 5.51 in

Stroke: 6.18 in

Operating Weight: 67900 lb

Maximum Digging Depth: 23.7 ft

Maximum Reach at Ground Level: 35.7 ft

Bucket Digging Force: 35900 lbf

Maximum Cutting Height: 33.2 ft

Fuel Tank Capacity: 108.3 gal

Hydraulic System Fluid Capacity: 70.8 gal

Swing Speed: 10 rpm

Swing Torque: 81300 ft-lb
