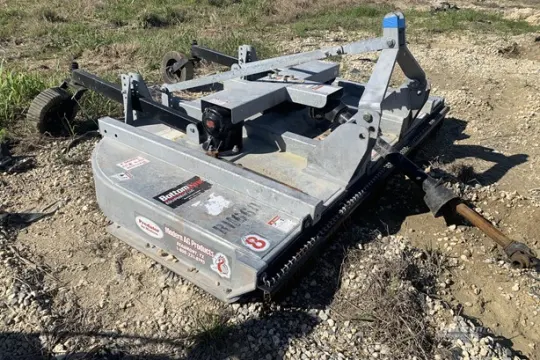

About this equipment

Cutting Width. . . . . . . . . 96” Transport Width. . . . . . . 102” Overall Width. . . . . . . . . 102” Overall Length. . . . . . . . 97” Overall Height. . . . . . . . 2” - 15” Blade Overlap. . . . . . . . 3” Jackstand. . . . . . . . . . . Standard Hitch. . . . . . . . . . . . . . . QA Cat. II or Clevis Blade Carrier. . . . . . . . . Pan Stump Jumpers Horsepower Required (min): Lift. . . . . . . . . . . . . . . . . 50 hp Pull. . . . . . . . . . . . . . . . 45hp Main Gearbox or Divider Box*. . . . . . . 150 hp Outboard Gearbox or Center & Wings*. . . . 95 hp Output Shaft Diameter. . 2-3/8” Cut Capacity. . . . . . . . . 3” Blade Tip Speed: 540. . . . . . . . . . . . . . . . 15,847 FPM 1000 . . . . . . . . . . . . . . . 15,847 FPM Driveline Size: Pull Type. . . . . . . . . . . . Pull-Cat. 5 CV w/Slip Clutch QA Lift Type. . . . . . . . . . QA -Cat. 4 w/Clutch Deck Thickness. . . . . . . 3/16” Side Skirt. . . . . . . . . . . . 1/4” x 8” Front Safety Deflectors Chain Option Rear Safety Deflectors: Rubber Guard Standard with Chain Option Weight (Approx):. . . . . . QA 1975 lbs. Pull 2370 lbs. Standard Tires. . . . . . . . Laminated 600 x 9 Dual Tailwheels (Pull Type). . . . . . . . . . . Option Hydraulic Level Lift (Pull Type). . . . . . . . Standard
