Engine

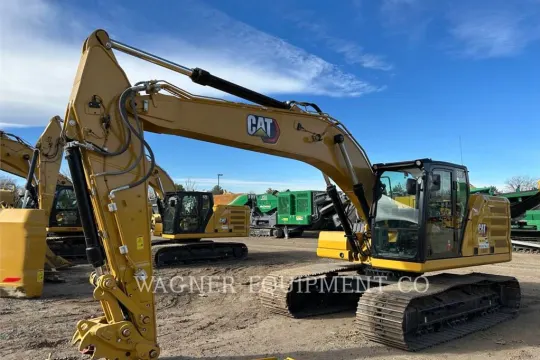

320 07 EXCAVATOR ARRANGEMENT

352 GD 4/1/25

ALTERNATOR, 145A C4.4 ENGINE

BATTERIES, 2

BEARING, SWING, HD

BOOM TUBE W/EOU

BOOM, REACH 18'8" HD

CAB, DELUXE

CAMERA, 360 VISIBILITY

COMMON ARRANGEMENT

CONSISTS OF:

CONTROL, QC

COOLANT, COLD WEATHER

COUNTERWEIGHT, 4.7MT (10,360LB)

COUPLER PG W/O PIN B1

CYLINDER, BKT, B1

CYLINDER, BOOM

CYLINDER, STICK

END OF CONSISTS

FILM, EMC

FILM, EXTERIOR, ANSI

FILM, INTERIOR, ANSI

FILM, OPERATING PATTERN, 2WAY

FILM, ROPS

FILM, STICK WARNING, ANSI

FLOORMAT, STD

FRAME, SWING, HD

GRADE 2D ASSIST & PAYLOAD

GRADE SENSOR, R9'6" STICK

GRADE SENSOR, REACH BOOM

GUARD, BOTTOM, STD

GUARD, SWIVEL, STD

GUARD, TRACK GUIDE, SEGMENTED

GUARD, TRAVEL MOTOR, STD

HANDHOLDS, RAD COMPARTMENT

HYDRAULIC PKG, COMB ADV

INTEGRATED RADIO, W/O DAB

JOYSTICK STEER + AUX RELAY PKG

JOYSTICKS, 5 BUTTON 2 SLIDER

LIGHT, CHASSIS

LIGHTS PKG, BOOM LH & RH

LIGHTS, CAB, W/RAIN PROTECTOR

LINES, AIR CONDITIONER

LINES, DRAIN, PG QC

LINES, FRONT, STD

LINES, HP, R9'6" STICK

LINES, HP, REACH BOOM

LINES, QC, R9'6" STICK

LINES, QC, REACH BOOM

LINES, SWIVEL W/SWING SENSOR

LINKAGE, BKT, B1 W/EYE GRADE

MACHINE ECM

MIRROR, CAB, W/O GUARD

MONITOR, 10"

NETWORK MANAGER, A6N1

Online Owner's Manual

PEDAL, STRAIGHT TRAVEL

PROD LINK, PLE643/PLE743 RADIO

QUICK DRAINS READY

RECEIVER, BLUETOOTH

SENSOR, PRESSURE, EOU

SERIALIZED TECHNICAL MEDIA KIT

STARTING AID, ETHER

STK, R9'6" HD W/THUMB BRACKET

STORAGE TRAY

SUCTION LINE, PUMP, STD

SUN SCREEN, REAR

SWING DRIVE

SWIVEL, W/SWING SENSOR

TRACK, 31" TG

TRAVEL, ALARM

UNDERCARRIAGE HD, W/SD ROLLER

VALVE, FINE SWING

WIPER, RADIAL W/O LOWER

Engine Power: 131 hp

Displacement: 276 cu in

Operating Weight: 50300 lbs

Fuel Capacity: 66.0 gal

Hydraulic System Fluid Capacity: 39.6 gal

Max Digging Depth: 22 ft

Max Reach Along Ground: 32 ft

Bucket Capacity: 1.0 cu yd

Track Type: Steel

Boom/Stick Option (HEX) 1: Reach Boom 18'8" + Stick 9'6"

Emissions: Tier 4 Final
