2019 Caterpillar 966M
- 4269 hours
- Ships nationwide
- #A3814020
+8 more2019 Caterpillar 966M
- 4269 hours
- Ships nationwide
- #A3814020
About this equipment

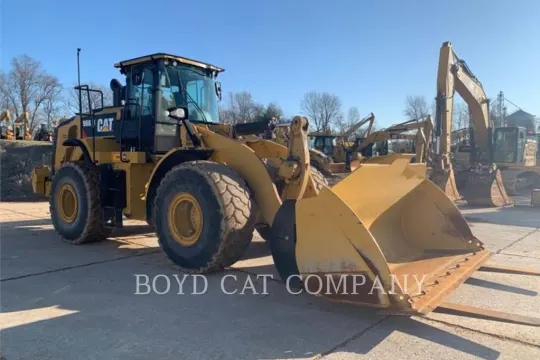

The 2019 Caterpillar 966M wheel loader is a robust and technologically advanced machine, designed for high efficiency and performance in heavy-duty applications. It features a powerful Cat C9.3 ACERT engine with a net power of 276 hp and a gross power of 299 hp, ensuring substantial force and speed with a maximum of 23.5 mph both forward and reverse. The machine offers a bucket capacity range of 3.25 to 12.0 cubic yards and includes a highly durable Performance Series Bucket, optimized Z-Bar linkage, and advanced electronic control systems for improved handling and material retention. Additional features like a rearview camera, electro-hydraulic controls, and a deluxe operator’s seat enhance functionality and operator comfort, making it ideal for demanding environments.
Features
Advanced Productivity Electronic Control System (APECS)
Performance Series Buckets for Better Material Retention
Caterpillar Optimized Z-Bar Loader Linkage
Next Generation Ride Control
Electro-Hydraulic Controls
Cat C9.3 ACERT Engine with Emissions Technology
Lock-up Clutch Torque Converter (Optional)
Fusion Quick Coupler System (Optional)
Full-color Touch Screen Display with On-Board Diagnostics
Rearview Camera with In-Cab Monitor
Deluxe Operator's Seat with Air Suspension and Heating (Optional)
Load-Sensing Hydraulics
Joystick Steering System (Optional)
Programmable Kick-outs for Lift Arm and Bucket Positions
Economy Mode for Fuel Savings (Optional)
Specifications
Net Power: 276 hp
Gross Power: 299 hp
Displacement: 537 cu in
Number of Cylinders: 6
Operating Weight: 51100 lb
Fuel Capacity: 108.3 gal
Bucket Capacity Range: 3.25 - 12.0 yd³
Bucket Width: 9.8 ft
Breakout Force: 47762 lb
Static Tipping Weight: 37310 lb
Turning Radius: 22.6 ft
Maximum Speed Forward: 23.5 mph
Maximum Speed Reverse: 23.5 mph
Transmission Type: Powershift
Number of Forward Gears: 4
