Emissions Level - Japan - STEP 4 FINAL

Emissions Level - EPA - EPA TIER 4f

Emissions Level - EU - EU STAGE V

Air Conditioner

Coupler - Quick

Engine Enclosures

Lighting

ROPS - Enclosed

Mirrors

Coupler Type - Hydraulic

Radio - AM FM Radio

Bucket

Lift - Standard

Ride Control

Steering Type - Wheel

Auto Shift

.

- FOLEY WORK READY -

ATTACHMENTS SHOWN SUBJECT TO CHANGE AND MAY NOT BE

INCLUDED IN PRICE

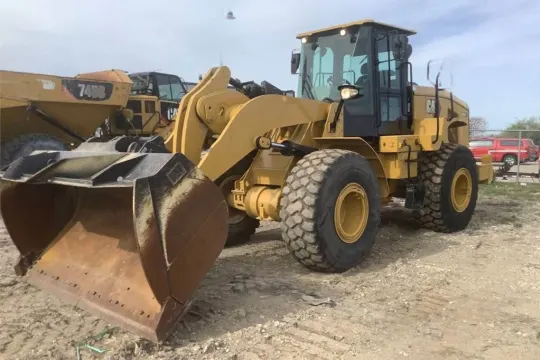

950 GC WHEEL LOADER

AIR INLET STANDARD, RAIN CAP

AXLE ARR, (LSD, OPEN)

BKT GP GC

COLD WEATHER PACKAGE, AM-N

CONVERTER (24V TO 12V/15A)

COUNTERWEIGHT, 1368KG, STD

CUTTING EDGE, BOLT-ON

FAN, STANDARD

FENDER, EXTENSIONS, STEEL

FRAME, MANUAL LUBE, STD OSC

GUARD, POWERTRAIN

HYDRAULICS, 3V RC ANSI

LIGHTING, STANDARD

LIGHTS, 5 CONNECTORS

LIGHTS, WORKING, 4 HALOGEN

LINKAGE, STANDARD, 3V/QC

NO TOOLBOX

Online Owner's Manual

PRODUCT LINK, CELLULAR PL641

QUICK COUPLER READY

RADIO, AM/FM

REGIONAL PKG, AM-N

SEAT BELT,

SERIALIZED TECHNICAL MEDIA KIT

SINGLE AXIS LEVER 3 W/FNR

STEERING SYST, STANDARD

SUN VISOR, REAR

SUSPENSION SEAT, AIR

TIRES, 23.5R25 MA MS302 ** L3

TRANSPORTATION GRP

Engine Power: 225 hp

Net Power - ISO 9249: 225 hp

Peak Torque - 1,200 rpm - SAE J1995: 872 lb ft

Displacement: 427.8 cu in

Bucket Capacity: 3.1-4.4 yd³

Operating Weight: 41425.4 lb

Maximum Travel Speed: 23.5 mph

Breakout Force: 34078 lb

Static Tipping Load - Full Turn: 26455 lb

Hydraulic System - Implement Pump: 83 gal/min
