Air Conditioner

Ultra Low Sulfur Diesel Fuel

Mirrors

Engine

Forks - Pallet

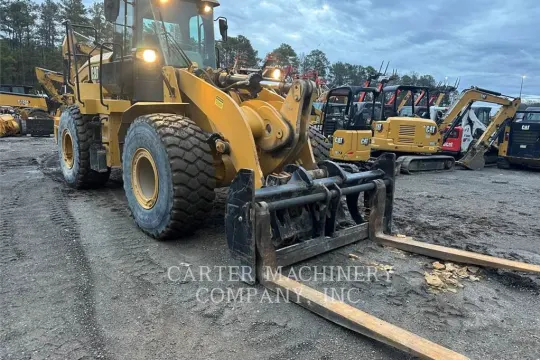

950 GC WHEEL LOADER

AIR INLET STANDARD, RAIN CAP

AXLE ARR, (OPEN, OPEN)

BKTA GP ST 115" 4.00YD3 FUS

CLEAN EMISSIONS MODULE TR4FINAL

COLD WEATHER PACKAGE, AM-N

CONVERTER (24V TO 12V/15A)

COUNTERWEIGHT, 1368KG, STD

FAN, STANDARD

FRAME, MANUAL LUBE, STD OSC

HYDRAULICS,2V,W/RIDE CTRL ANSI

LIFT, STANDARD

LIGHTING, STANDARD

LIGHTS, 9 CONNECTORS

LIGHTS, WORKING, 4 HALOGEN

LINKAGE, STANDARD, 3V/QC

Online Owner's Manual

PRODUCT LINK, CELLULAR PL641

Protection 12 mo. / 1000 hr. PT + HYD

QUICK COUPLER, FUSION

RADIO, AM/FM

REGIONAL PKG, AM-N

ROPS, ENCLOSED

SEAT BELT, 3", AUTO-ANTI-CINCH

SINGLE AXIS LEVERS W/FNR

STEERING SYST, STANDARD

SUSPENSION SEAT, AIR

TIRES, 23.5R25 MA MS302 **L3

TOOL BOX

WARNING BEACON, LED

Engine Power: 225 hp

Net Power - ISO 9249: 225 hp

Peak Torque at 1,400 rpm: 872 lb ft

Displacement: 427.8 cu in

Bucket Capacity: 3.1-4.4 yd³

Operating Weight: 41441 - 41887 lb

Maximum Travel Speed: 23.5 mph

Hydraulic System - Implement: 44.9 gal/min

Breakout Force: 34031 lb

Static Tipping Load - Full Turn: 26901 lb

Dump Clearance at Full Lift and Discharge: 9.5 ft

Turning Radius - Over Bucket: 23 ft
