2023 Caterpillar 938M
- 5186 hours
- Ships nationwide
- #A1988608
+19 more2023 Caterpillar 938M
- 5186 hours
- Ships nationwide
- #A1988608
About this equipment

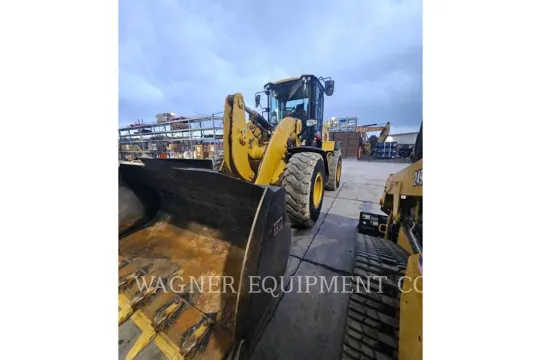

The 2023 Caterpillar 938M wheel loader is a robust and efficient machine, designed to meet the rigorous demands of construction and material handling. Powered by a 188 hp engine with a peak torque of 656 lb-ft, this loader features a 3.5 cubic yard bucket and advanced hydraulic systems for optimal performance. It boasts a range of enhancements including ride control, a deluxe cab, and a comprehensive guarding system for critical components. With an operating weight of 35,987 lbs and a breakout force of 29,628 lbs, it ensures high productivity and durability. Additionally, it meets U.S. EPA Tier 4 Final/EU Stage V emission standards, making it an environmentally responsible choice.
Features
Engine
Ride Control
5186 GD 1/27/25
BUCKET-GP, 3.5 YD3, FUS, BOCE
CAB, DELUXE
CTWT, HEAVY,3770LBS,7PCS
DIFFERENTIAL,LIMITED SLIP REAR
ENGINE, 938
ENVIRONMENT, STANDARD
FENDERS, STANDARD
GUARD, CRANKCASE
GUARD, DRIVESHAFT
GUARD, POWERTRAIN, LOWER
GUARD, POWERTRAIN, SIDE
HYDRAULIC OIL, STANDARD
HYDRAULICS, 3V, CPLR READY, SL
HYDRAULICS, STANDARD
JUMPER LINES, NONE
LIGHTS, AUX, HALOGEN
LIGHTS, ROADING, HALOGEN, RH
LINES, AUX 3RD, STD LIFT
Online Owner's Manual
PRODUCT LINK, CELLULAR PL641
QUICK COUPLER,FUSION,HIGH VIS
SEAT, DELUXE
STANDARD RADIO (12V)
STEERING, STANDARD
TIRES,20.5R25 MX XHA2 * L3
TOOLBOX AUX
WARNING, BEACON, LED STROBE
WEATHER, COLD START 120V
Specifications
Engine Power: 188 hp
Net Power - ISO 9249: 188 hp
Peak Torque at 1,400 rpm: 656 lb ft
Displacement: 428 in³
Bore: 4.1 in
Stroke: 5 in
Emissions: Meets U.S. EPA Tier 4 Final/EU Stage V emission standards
Operating Weight: 35987 lb
Fuel Tank Capacity: 51.5 gal
Bucket Capacities: 2.5 yd³ to 3.5 yd³
Static Tipping Load, Full Turn: 22817 lb
Breakout Force: 29628 lb
Hydraulic System: 3rd valve
Max Travel Speed: 25 mph
Transmission Type: Hydrostatic, 4F/3R Proportional w/ electronic control
